Single Beam X-ray Inspection System for Bottles, Jars and Cans Inclined Downward Single Beam X-ray Inspection System
*Single Beam X-ray Inspection System (Inclined Downward) Introduction:
Single Beam X-ray Inspection System is specifically designed to inspect or check objects in cans, tins and bottles. The Single Beam X-ray Inspection System is with adjustable inspection range based on different dimensions of cans, jars and bottles. The X-ray machine adopts one set imaging systems with special design, to achieve inspection in side visual angles and avoid missing inspection of blind area. This type of X-ray machine is widely used to check fluid and semi-fluid products like drinks, sauce etc.
The X-ray machine is multi-functional, to achieve the inspection for foreign bodies, caps, filling level and packing defects synchronously. Especially, the Single Beam X-ray Inspection System can achieve very good performance for metal contaminants at the bottom of cans, jars and bottles.
*Parameter of Single Beam X-ray Inspection System (Inclined Downward)
| Model |
TXR-1630SO |
| X-ray Tube |
MAX. 120kV, 480W |
| Max Detecting Width |
160mm |
| Max Detecting Height |
280mm |
| Best Inspection Ability |
Stainless steel ball Φ0.5mm Stainless steel wire Φ0.3*2mm Glass/Ceramic ball Φ1.5mm |
| Conveyor Speed |
10-60m/min |
| O/S |
Windows 7 |
| Protection Method |
Protective tunnel |
| X-ray Leakage |
< 0.5 μSv/h |
| IP Rate |
IP54 (Standard), IP65 (Optional) |
| Working Environment |
Temperature: -10~40℃ |
|
Humidity:30~90%, no dew |
|
| Cooling Method |
Industrial air conditioning |
| Rejecter Mode |
Push rejecter |
| Air Pressure |
0.8Mpa |
| Power Supply |
3.5kW |
| Main Material |
SUS304 |
| Surface Treatment |
Mirror polished/Sand blasted |
*Note
The technical parameter above namely is the result of sensitivity by inspecting only the test sample on the belt. The actual sensitivity would be affected according to the products being inspected.
*Packing

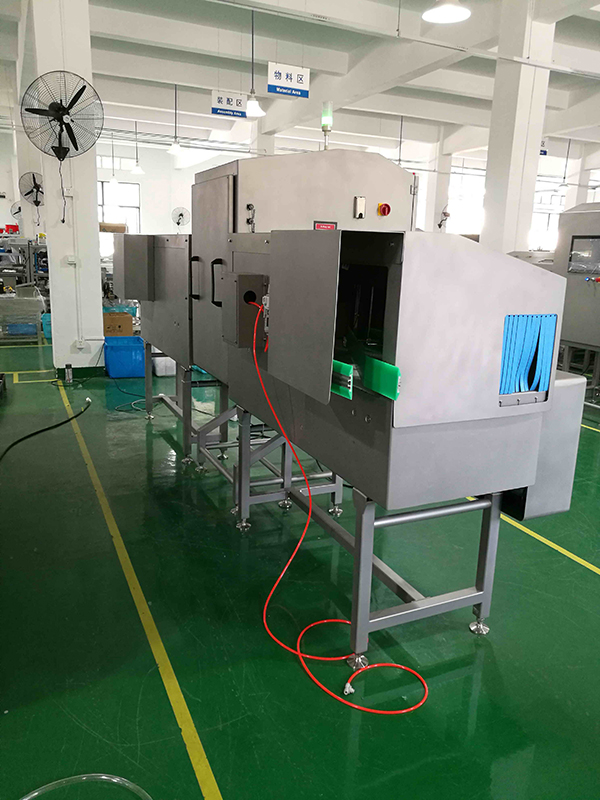

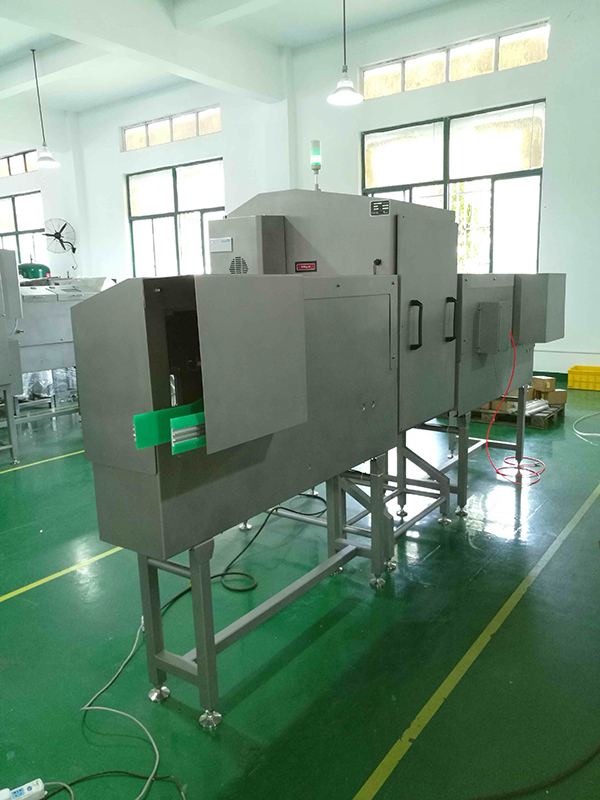

*Factory Tour
