online Combo check weight conveyor machine

Short Description:

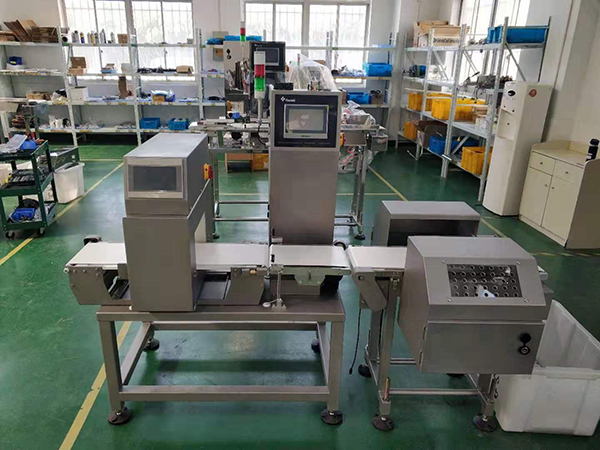

Metal detector and checkweigher combo machine, metal detection and weight check can be achieved in one machine at the same time. Widely used for food, agricultural products, medicine, consumable and other industries.


Product Detail

Video

Product Tags

*Product Introduction:


Metal detector and checkweigher combo machine, metal detection and weight check can be achieved in one machine at the same time. Widely used for food, agricultural products, medicine, consumable and other industries.

*Advantages:


1.Compact design, saving space and installation cost
2.Metal detector and checkweigher is perfectly connected in one frame, to install the machine in workshop conveniently and effectively

*Parameter


Model

IMC-230L

IMC-300

Detecting Range

20~2000g

20~5000g

Scale Interval

0.1g

0.2g

Accuracy(3σ)

±0.2g

±0.5g

Detecting Speed (Max Speed)

155pcs/min

140pcs/min

Maximum Belt Speed

70m/min

70m/min

Weighed Product Size Width

220mm

290mm

Length

350mm

400mm

Height

70mm, 110mm, 140mm, 170mm

Weighed Platform Size Width

230mm

300mm

Length

450mm

500mm

Height

80mm, 120mm, 150mm, 180mm

Sensitivity Fe

Φ0.5mm, Φ0.7mm, Φ0.7mm, Φ0.7mm

SUS

Φ1.2mm, Φ1.5mm, Φ1.5mm, Φ2.0mm

Product Storage Quantity

100 kinds

Segments Number of Sorting

3

Rejecter

Rejecter optional

Power Supply

AC220VOptional

Degree of Protection

IP54/IP66

Main Material

Mirror Polished/Sand blasted

*Note:


1.The technical parameter above namely is the result of accuracy by checking only the test sample on the belt. The accuracy would be affected according to the detecting speed and product weight.
2.The detecting speed above will be affected according to the product size to be checked.
3.Requirements for different sizes by customers can be fulfilled.

*Packing


3fde58d77d71cec603765e097e56328

3fde58d77d71cec603765e097e56328

3fde58d77d71cec603765e097e56328

*Factory Tour


3fde58d77d71cec603765e097e56328

3fde58d77d71cec603765e097e56328

3fde58d77d71cec603765e097e56328

3fde58d77d71cec603765e097e56328

3fde58d77d71cec603765e097e56328

3fde58d77d71cec603765e097e56328

*Customer application


3fde58d77d71cec603765e097e56328

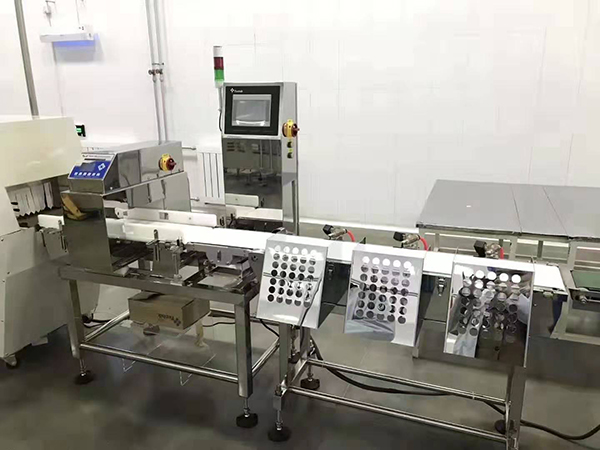

Combo Machine for meat

3fde58d77d71cec603765e097e56328

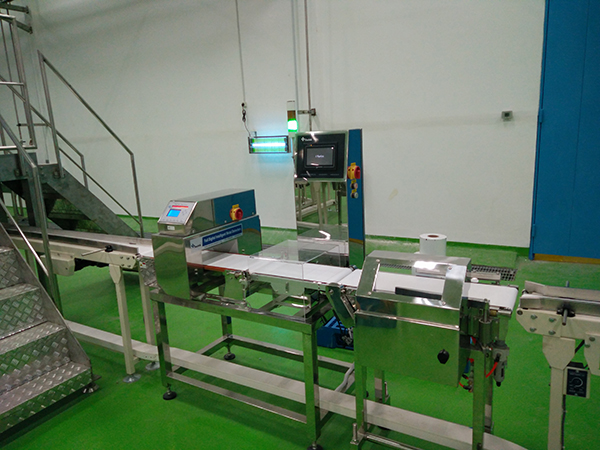

Combo Machine used in Glico Wings (1)

3fde58d77d71cec603765e097e56328

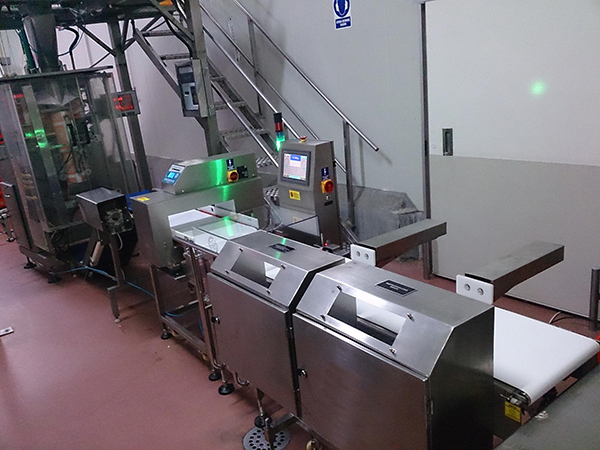

Combo Machine used in Glico Wings

3fde58d77d71cec603765e097e56328
Combo Machine used in Glico Wings
