Multi-tray Weight Sorting Machine

Short Description:

The dynamic weight sorting equipment is a device, which sorts the products automatically with a high speed and a high accuracy according to their weights ranged by the user’s requirements, which is widely used in seafood, poultry, aquatic products, frozen products, etc.


Product Detail

Video

Product Tags

*Product Introduction:


The dynamic weight sorting equipment is a device, which sorts the products automatically with a high speed and a high accuracy according to their weights ranged by the user’s requirements, which is widely used in seafood, poultry, aquatic products, frozen products, etc.

*Advantages:


1.High speed, high sensitivity, high stability
2.Replacing labor sorting, saving cost, improving efficiency and optimizing the production process
3.Reduce human exposure to products and meet food HACCP safety requirements
4.The grading section quantity can be freely set as required
5.Touch screen operation, user-friendly
6.Detailed log function, convenient for QC
7.Stainless steel and alloy frame, good environmental adaptability and stability

*Parameter


Model

IXL-GWS-S-8R

IXL-GWS-S-16R

IXL-GWM-S-8R

IXL-GWM-S-16R

IXL-GWL-S-8R

IXL-GWL-S-12R

Weight Range

Note 1

8

16

8

16

8

16

AccuracyNote 2

±0.5g

±1g

±2g

Maximum Speed

300PPM

280PPM

260PPM

Detecting Range

2~500g

2~3000g

Power Consumption

AC220V0.75KW

Main Material

Stainless steel (SUS304) & food grade resin

Machine

Size

L

3800mm

4200mm

4500mm

W

800mm

800mm

800mm

H

1500mm

1500mm

1500mm

Operation Height

800~950mmcan be customized )

Machine Weight

280Kg

350Kg

290Kg

360Kg

350Kg

45Kg

IP Rate

IP66

Suitable Products

Wing, thigh,

leg meat,

sea cucumber, abalone, shrimp, fish, etc.

Thigh, breast, upper leg meat, melon and fruit, etc.

Large chunk of meat, fish, etc.

Scale Quantity

1 scale platform

Tray Size

L

170mm190mm220mm

260mm

300mm

W

95mm

130mm

150mm

*Note:


Note 1: Other weight ranges can be customized (but can’t over the max weight range);
Note 2: The Weighing accuracies are variables, which are depended on the product characters, shape, quality, detecting speed and size.

*Packing


3fde58d77d71cec603765e097e56328

3fde58d77d71cec603765e097e56328

3fde58d77d71cec603765e097e56328

*Factory Tour


3fde58d77d71cec603765e097e56328

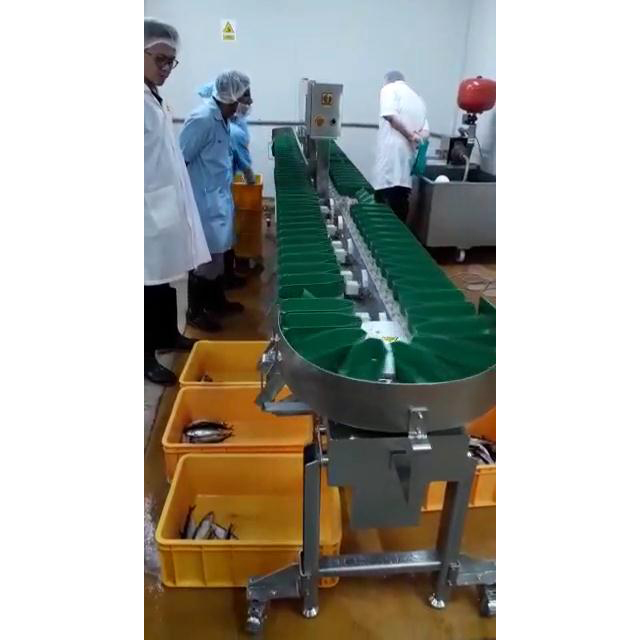

*Customer application
